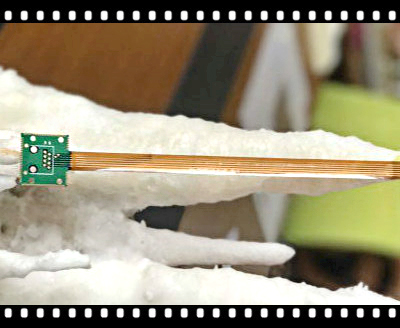

2L-RF4-Flex board


RF4 Flex board

RF4-Flex board



Production process:


Cutting1.jpgChemical&Physical Laborato.jpgInner Dry Film Imaging.jpgInner layer etch.jpg
Cutting
laboratoryDry FilmInner Etching
Auto Drill Bit Sharpener.jpgDrilling (Auto Drilling machine).jpgPTH & Surface Copper Measu.jpgPanel plating.jpg
Auto Drill Bit SharpenerDrillingPTHPanel Plating
HASL Line (Lead and Lead.jpgENIG ThicknessSolder Mask.jpgAuto E-test Machine.jpg
HASL Lead FreeImmersion Gold
Solder MaskE-test
Routing.jpgFQC.jpgAOI Test.jpgInspection Machine.jpg
ProfileFQCAOI SacningInpection Machine
Final Audi.jpgpacking.jpg


Final AudiPacking



Specification:


CodeHYG002R06002ACustomer PN


Layer2LBlind/Buried ViaNO

Base MaterialFR4-PIUnit Size(mm)27.3000X21.3000
Board thickness/Panle Size(mm)85.7000
X114.8000
Min hole0.6mmPcs/Panle1X1
Total Holes/Copper OZ(finish)1OZBase Cu/
W/S(mil)6/4milMin Hole Copper Thickness20um

Outline FinishCNC+V-CUTFinish thickness tolerance+/-10%

Contour tolerance+/-0.13mmSurface Finishing
ENIG Thickness

X-out/Solder MaskGreen

Special request
Silkscreen/
