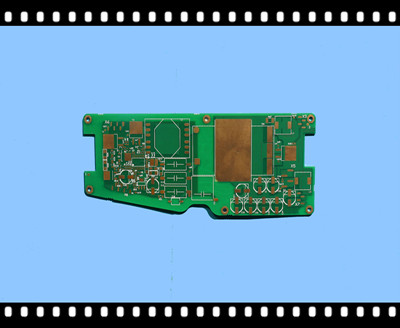

HYG002AF01003A

00201003

Production process:


Cutting1.jpgChemical&Physical Laborato.jpgInner Dry Film Imaging.jpgInner layer etch.jpg
Cutting
laboratoryDry FilmInner Etching
Auto Drill Bit Sharpener.jpgDrilling (Auto Drilling machine).jpgPTH & Surface Copper Measu.jpgPanel plating.jpg
Auto Drill Bit SharpenerDrillingPTHPanel Plating
HASL Line (Lead and Lead.jpgENIG ThicknessSolder Mask.jpgAuto E-test Machine.jpg
HASL Lead FreeImmersion Gold
Solder MaskE-test
Routing.jpgFQC.jpgAOI Test.jpgInspection Machine.jpg
ProfileFQCAOI SacningInpection Machine
Final Audi.jpgpacking.jpg


Final AudiPacking

 Specification:

CodeHYG002AF01003ACustomer PN


Layer1Blind/Buried ViaNO

Base MaterialFR4+Alu
Unit Size(mm)75.0000X193.0000
Board thickness1.73mmPanle Size(mm)/
X/
Min hole0.45mmPcs/Panle1X1
Total Holes/Copper OZ(finish)1OZBase Cu/
W/S(mil)/
Min Hole Copper Thickness20um

Outline FinishCNC
Finish thickness tolerance+/-10%

Contour tolerance+0.15mmSurface Finishing
ENIG Thickness2u"

X-out
Solder MaskGreen

Special request
SilkscreenWhite


FAQ:

 Q:Are you a manufacturer (Factory) or trading company?

A:HoYoGo is a manufacturer with a mass production of 25000 sqm factory and a medium-size production for small-medium volume. Our UL No. is E493066.

Q:Do you have a price list?

A:PCB is customized product; all prices will depend on customer actual gerber data and qty request, it will be difficult to provide it.

Q:Can you offer me better payment term (OA 30/45/60 DAYS)?

A:It depends on customer credit and their company finance. In general, we suggest start with prepayment for some testing order to get credit record. OA term can be released step by step according to cooperation situation.
