HYG1005R16014A

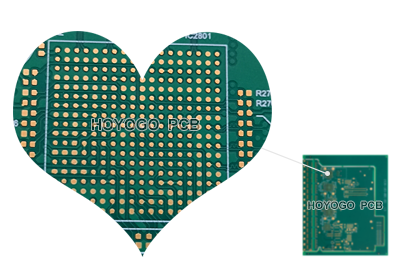

Product Image

Product Details

Special Request:
1. Impedance control requirements.
2. 0.2mm&0.3mm vias: Resin plug and electroplated fill,
compliant with IPC-4761 VII.

Layer: 16L
Base Material: FR4, IT-180A
Board Thickness: 2.58+/-0.2mm
Outer Layer Final Copper Thickness: 1OZ
Inner Layer Final Copper Thickness: 0.5OZ&1OZ
Surface Finished: ENIG
Unit Size(mm): 241.00*214.10
Min. W/S(mil): 3.54/2.99
Min. Hole Size: 0.25mm

Production Process

ISO Certification

UL Certification

Application areas

Who will be our parters

FAQ

What’s kind of PCB can you produce?
Our production is producing rigid PCB from 2~56layer with small- medium- mass volume. In the meantime, we can offer you FPC, Rigid-flex, HDI, all other special PCBs from our partner production.
