HYG504F01005A

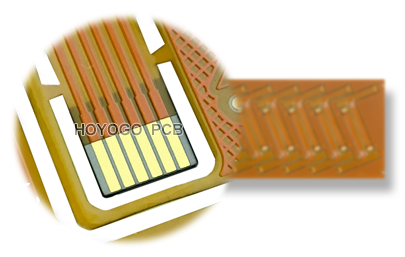

Product Image

Product Details

Gold Finger FPC
Special Request:
TOP side single-sided FPC + BOTTOM side FR4 stiffener + BOTTOM side PI stiffener (finger back side)

Layer: 2L
Base Material: FPC(PI 50um)+FR4 Stiffener(TG 150℃)+PI Stiffener
Board Thickness: FPC+Stiffener FR4: 1.6±0.16mm
Flexible PCB Area: 0.12±0.03mm
FPC+Stiffener PI: 0.3±0.03mm
Final Copper Thickness: ≥24.9um
Surface Finished: ENIG
Unit Size(mm): 50.30*66.00
Solder Mask: Yellow coverlay

Production Process

ISO Certification

UL Certification

Application areas

Who will be our parters

FAQ

Can you produce hard gold PCB? How about the thickness?
Yes. HoYoGo can offer hard gold. The max thickness will be 120u”. The actual thickness depends on customer request.
