Home Products Flex PCB

HYG306RF02002A

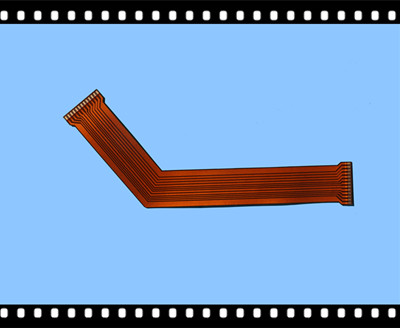

Product Image
HYG306RF02002A
Production process

Specification
Code HYG306RF02002A Customer PN


Layer 2 Blind/Buried Via NO

Base Material Flex&Rigid PCB Unit Size(mm) 164.1300
 X 72.6600
Board thickness 0.7/0.25 Panle Size(mm) /
 X /
Min hole / Pcs/Panle 1 X 1
Total Holes /
 Copper OZ(finish) 1OZ Base Cu /
W/S(mil) 19.69/19.61 Min Hole Copper Thickness 20um

Outline Finish CNC
 Finish thickness tolerance +/-0.1mm

Contour tolerance +/-0.15mm Surface Finishing
 ENIG Thickness

X-out / Solder Mask /

Special request / Silkscreen /
Customer Evaluation
20170809113338_62641_副本_副本.jpg 20170809115057_80100_副本.jpg one.jpg 20170809115226_98108_副本.jpg
