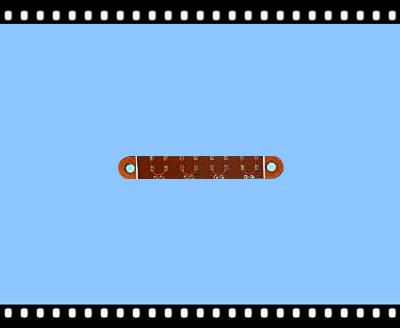

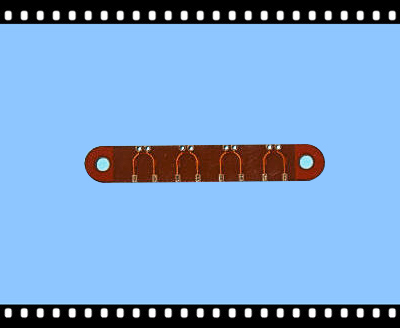

| Code | HYG1281F02002A | Customer PN |
|
|
|
| Layer | 2 | Blind/Buried Via | NO |
|
|
| Base Material | PI,ITEQ | Unit Size(mm) |
5.7200 |
X | 36.0400 |
| Board thickness | 0.23mm | Panle Size(mm) |
/ |
X | / |
| Min hole |
0.3mm |
Pcs/Panle | / | X | / |
| Total Holes | 26/PCS | Copper OZ(finish) | 1OZ | Base Cu | / |
| W/S(mil) | 6.3/42.7 | Min Hole Copper Thickness | 20um |
|
|
| Outline Finish |
Lasering |
Finish thickness tolerance | +/-0.05mm |
|
|
| Contour tolerance | +/-0.15mm |
Surface Finishing |
ENIG Thickness |
|
|
| X-out | / | Solder Mask | Yellow |
|
|
| Special request | / | Silkscreen | White |
|
|
|
|
|
