Home Products Rigid PCB

HYG068R01030A

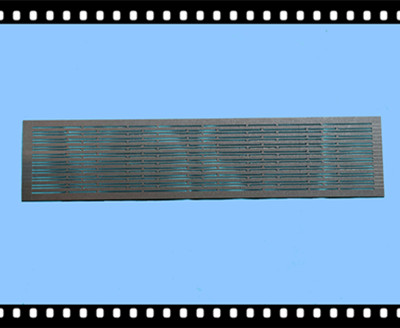

Product Image
HYG068R01030A
Production process

Specification
Code HYG068R01030A Customer PN


Layer 1 Blind/Buried Via NO

Base Material CEM1 Unit Size(mm) 285.2000
 X 11.5000
Board thickness 1.50mm Panle Size(mm) 285.2000 X 131.0000
Min hole / Pcs/Panle 1 X 1
Total Holes / Copper OZ(finish) 1OZ Base Cu /
W/S(mil) / Min Hole Copper Thickness 35u

Outline Finish E-Test
 Finish thickness tolerance +/-10%

Contour tolerance +/-0.13mm Surface Finishing
 HASL LeadFree

X-out / Solder Mask White

Special request / Silkscreen Black

ISO Certification

UL Certification

Application areas
