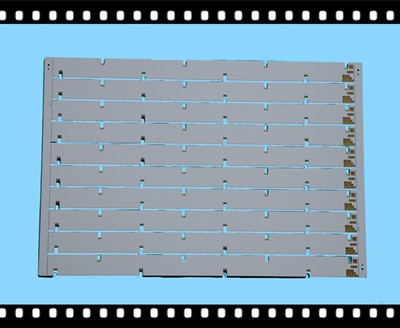

| Code | HYG1103R02004A | Customer PN | / |
|
|
| Layer | 2 | Blind/Buried Via | NO |
|
|
| Base Material | FR4 TG130/140 | Unit Size(mm) | 375.0000 | X | 25.0000 |
| Board thickness | 1.6 | Panle Size(mm) | 395.0000 | X | 268.0000 |
| Min hole | / | Pcs/Panle | 1 | X | 10 |
| Total Holes | / | Copper OZ(finish) | 2OZ | Base Cu | / |
| W/S(mil) | / | Min Hole Copper Thickness | / |
|
|
| Outline Finish | CNC+V-CUT | Finish thickness tolerance | +/-10% |
|
|
| Contour tolerance | +/-0.13MM | Customer' Specifications | HYG |
|
|
| X-out | 1 | Solder Mask | White |
|
|
| Special request | 3 Tool holes | Silkscreen |
Black |
