Rigid-flex PCB|HYG306RF06016A

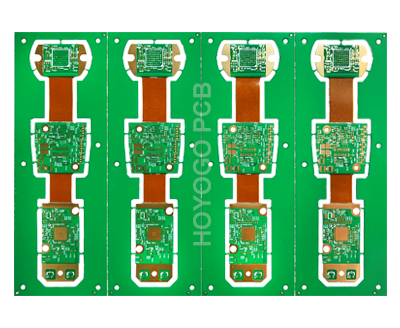

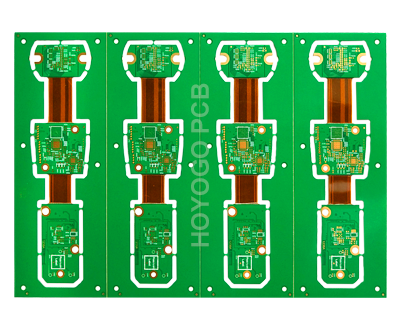

Product Image

Product Details

Layer: 6L

Base Material: FR4(TG170)+PI

Board Thickness: 1.08mm

Final Copper Thickness: 1oz

Surface Finished: ENIG

Unit Size（mm）：140.0*50.0

Panel Size（mm）：140.0*200.0

Min Hole Size : 0.12mm

Min Hole Copper Thickness : 20um

Min W/S(mil): 3.94/3.94

Solder Mask: green

Coverlay: yellow
