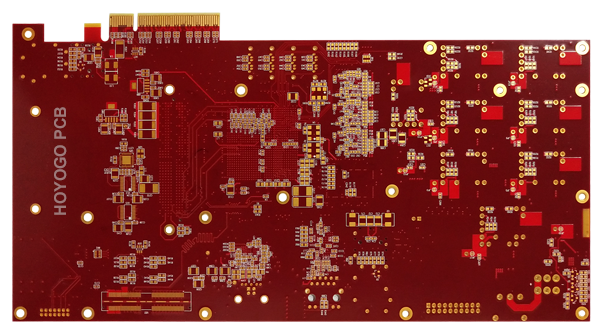

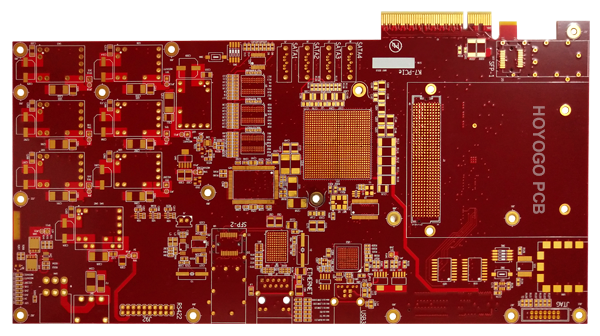

16L PCB|HYG531R16001A|TU 768

PCB



16L PCB

cap plating pcb

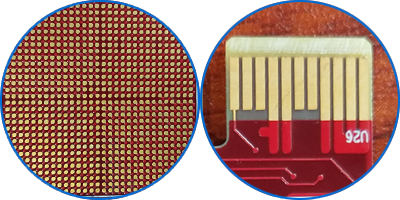

BGA+Gold finger

Impedance strip


PCB


Layer : 16L

Base Material : TU-768

Board Thickness : 1.57±0.1mm

Final Copper Thickness: 20um

Surface Finished : ENIG+Golden Finger

Special Process : Via Plug with Resin, Cap Plating

 Impedance Control

Single Impedance : 14 group

Differential Impedance : 13 group

Set Size : 266.7*139.71mm

Unit Size : 266.7*139.71mm

Min Hole Aperture : 0.2mm

Min Line Width : 3.5mil

Min Line Spacing : 4.3mil

Solder Mask Brand: LP-4G/R36

Solder Mask Color : Red



PCB


PCB Make



ISO Certification:


ISO Certification



UL Certification


UL Certification



PCB


Application areas



PCB


our parters


PCB


Can you offer me better payment term (OA 30/45/60 DAYS)?

It depends on customer credit and their company finance. In general, we suggest start with prepayment for some testing order to get credit record. OA term can be released step by step according to cooperation situation.
