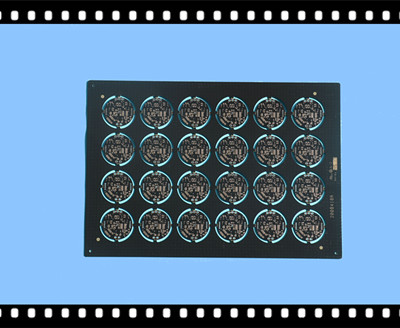

HYG089R02065A


2 layers FR4  black rigid pcb

rigid pcb



Production process:


Cutting1.jpgChemical&Physical Laborato.jpgInner Dry Film Imaging.jpgInner layer etch.jpg
Cutting
laboratoryDry FilmInner Etching
Auto Drill Bit Sharpener.jpgDrilling (Auto Drilling machine).jpgPTH & Surface Copper Measu.jpgPanel plating.jpg
Auto Drill Bit SharpenerDrillingPTHPanel Plating
HASL Line (Lead and Lead.jpgENIG ThicknessSolder Mask.jpgAuto E-test Machine.jpg
HASL Lead FreeImmersion Gold
Solder MaskE-test
Routing.jpgFQC.jpgAOI Test.jpgInspection Machine.jpg
ProfileFQCAOI SacningInpection Machine
Final Audi.jpgpacking.jpg


Final AudiPacking

 Specification:

CodeHYG089R02065ACustomer PN


Layer2Blind/Buried ViaNO

Base MaterialFR4Unit Size(mm)26.0000X26.0000
Board thickness1
Panle Size(mm)155.0000
X221.0000
Min hole0.3mm
Pcs/Panle4X6
Total Holes1656/SETCopper OZ(finish)1OZBase Cu/
W/S(mil)/Min Hole Copper Thickness20um

Outline FinishCNCFinish thickness tolerance+/-10%

Contour tolerance+/-0.15mmSurface Finishing
HASL Lead Free

X-out/Solder MaskBlack

Special request/SilkscreenWhite
