HYG528R06061A

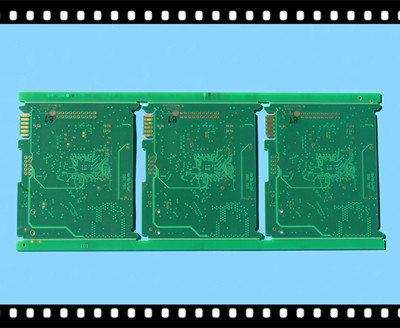

6 layers FR4 green ridig pcb

rigid pcb



Production process:


Cutting1.jpgChemical&Physical Laborato.jpgInner Dry Film Imaging.jpgInner layer etch.jpg
Cutting
laboratoryDry FilmInner Etching
Auto Drill Bit Sharpener.jpgDrilling (Auto Drilling machine).jpgPTH & Surface Copper Measu.jpgPanel plating.jpg
Auto Drill Bit SharpenerDrillingPTHPanel Plating
HASL Line (Lead and Lead.jpgENIG ThicknessSolder Mask.jpgAuto E-test Machine.jpg
HASL Lead FreeImmersion Gold
Solder MaskE-test
Routing.jpgFQC.jpgAOI Test.jpgInspection Machine.jpg
ProfileFQCAOI SacningInpection Machine
Final Audi.jpgpacking.jpg


Final AudiPacking

 Specification:

CodeHYG528R06061ACustomer PN


Layer6Blind/Buried ViaNO

Base MaterialFR4Unit Size(mm)86.0000X75.9000
Board thickness1.6mmPanle Size(mm)100.0000
X230.9000
Min hole0.250mm
Pcs/Panle1X3
Total Holes1856Copper OZ(finish)45um
Base Cu/
W/S(mil)4.7/3.6Min Hole Copper Thickness20-25um

Outline FinishCNC+V-CUTFinish thickness tolerance+/-0.14

Contour tolerance+/-0.1mmSurface Finishing
ENIG Thickness

X-outEQSolder MaskGreen


Special request/SilkscreenWhite


FAQ:

 Q:Are you a manufacturer (Factory) or trading company?

A:HoYoGo is a manufacturer with a mass production of 25000 sqm factory and a medium-size production for small-medium volume. Our UL No. is E493066.

Q:Do you have a price list?

A:PCB is customized product; all prices will depend on customer actual gerber data and qty request, it will be difficult to provide it.

Q:Can you offer me better payment term (OA 30/45/60 DAYS)?

A:It depends on customer credit and their company finance. In general, we suggest start with prepayment for some testing order to get credit record. OA term can be released step by step according to cooperation situation.
